Protecting An API With Client Credentials

Welcome to the first quickstart for IdentityServer! To see the full list of quickstarts, please see Quickstarts Overview.

This first quickstart provides step-by-step instructions to set up IdentityServer in the most basic scenario: protecting APIs for server-to-server communication. You will create a solution containing three projects:

• An Identity Server
• An API that requires authentication
• A client that accesses that API

The client will request an access token from IdentityServer using its client ID and secret and then use the token to gain access to the API.

Source Code

Finished source code for each quickstart in this series is available in the Samples repository, and a reference implementation of this quickstart is available here.

Video

In addition to the written steps below there’s also a YouTube video available:

Preparation

The IdentityServer templates for the dotnet CLI are a good starting point for the quickstarts. To install the templates open a console window and type the following command:

dotnet new install Duende.Templates

Note

You may have a previous version of Duende templates (Duende.IdentityServer.Templates) installed on your machine. Please uninstall the template package and install the latest version.

Create The Solution And IdentityServer Project

In this section, you will create a directory for the solution and use the isempty (IdentityServer Empty) template to create an ASP.NET Core application that includes a basic IdentityServer setup.

Back in the console, run the following commands to create the directory structure for the solution.

mkdir quickstart
cd quickstart
mkdir src
dotnet new sln -n Quickstart

This will create a quickstart directory that will serve as the root of the solution, a src subdirectory to hold your source code, and a solution file to organize your projects. Throughout the rest of the quickstart series, paths will be written relative to the quickstart directory.

From the new quickstart directory, run the following commands to use the isempty template to create a new project. The template creates a web project named IdentityServer with the IdentityServer package installed and minimal configuration added for it.

cd src
dotnet new isempty -n IdentityServer

This will create the following files within a new src/IdentityServer directory:

• Properties/launchSettings.json file - launch profile
• appsettings.json - run time settings
• Config.cs - definitions for resources and clients used by IdentityServer
• HostingExtensions.cs - configuration for ASP.NET pipeline and services Notably, the IdentityServer services are configured here and the IdentityServer middleware is added to the pipeline here.
• IdentityServer.csproj - project file with the IdentityServer NuGet package added
• Program.cs - main application entry point

Note

The src/IdentityServer/Properties/launchSettings.json file created by the isempty template sets the applicationUrl to https://localhost:5001. You can change the port that your IdentityServer host listens on by changing the port in this url. This url also sets the protocol (http or https) that the IdentityServer host will use. In production scenarios you should always use https.

Next, add the IdentityServer project to the solution. Back in the console, navigate up to the quickstart directory and add the IdentityServer project to the solution.

cd ..
dotnet sln add ./src/IdentityServer

Defining An API Scope

Scope is a core feature of OAuth that allows you to express the extent or scope of access. Clients request scopes when they initiate the protocol, declaring what scope of access they want. IdentityServer then has to decide which scopes to include in the token. Just because the client has asked for something doesn’t mean they should get it! There are built-in abstractions and extensibility points that you can use to make this decision. Ultimately, IdentityServer issues a token to the client, which then uses the token to access APIs. APIs can check the scopes that were included in the token to make authorization decisions.

Scopes don’t have structure imposed by the protocols - they are just space-separated strings. This allows for flexibility when designing the scopes used by a system. In this quickstart, you will create a scope that represents complete access to an API that will be created later in this quickstart.

Scope definitions can be loaded in many ways. This quickstart shows how to use a “code as configuration” approach. A minimal Config.cs was created by the template at src/IdentityServer/Config.cs. Open it and add an ApiScope to the ApiScopes property:

public static IEnumerable<ApiScope> ApiScopes =>
    new ApiScope[]
    {
        new ApiScope(name: "api1", displayName: "My API")
    };

See the full file here.

Note

In production, it is important to give your API a useful name and display name. Use these names to describe your API in simple terms to both developers and users. Developers will use the name to connect to your API, and end users will see the display name on consent screens, etc.

Defining The client

The next step is to configure a client application that you will use to access the API. You’ll create the client application project later in this quickstart. First, you’ll add configuration for it to your IdentityServer project.

In this quickstart, the client will not have an interactive user and will authenticate with IdentityServer using a client secret.

Add this client definition to Config.cs:

public static IEnumerable<Client> Clients =>
    new Client[]

    {
        new Client
        {
            ClientId = "client",

            // no interactive user, use the clientid/secret for authentication
            AllowedGrantTypes = GrantTypes.ClientCredentials,

            // secret for authentication
            ClientSecrets =
            {
                new Secret("secret".Sha256())
            },

            // scopes that client has access to
            AllowedScopes = { "api1" }
        }
    };

Again, see the full file here.

Clients can be configured with many options. Your minimal machine-to-machine client here contains:

• A ClientId, which identifies the application to IdentityServer so that it knows which client is trying to connect to it.
• A Secret, which you can think of as the password for the client.
• The list of scopes that the client is allowed to ask for. Notice that the allowed scope here matches the name of the ApiScope above.

Configuring IdentityServer

The scope and client definitions are loaded in HostingExtensions.cs. The template created a ConfigureServices method there that is already loading the scopes and clients. You can take a look to see how it is done. Note that the template adds a few things that are not used in this quickstart. Here’s the minimal ConfigureServices method that is needed:

Startup.cs

public static WebApplication ConfigureServices(this WebApplicationBuilder builder)
{
    // Can also be found in Program.cs
    builder.Services.AddIdentityServer()
        .AddInMemoryApiScopes(Config.ApiScopes)
        .AddInMemoryClients(Config.Clients);

    return builder.Build();
}

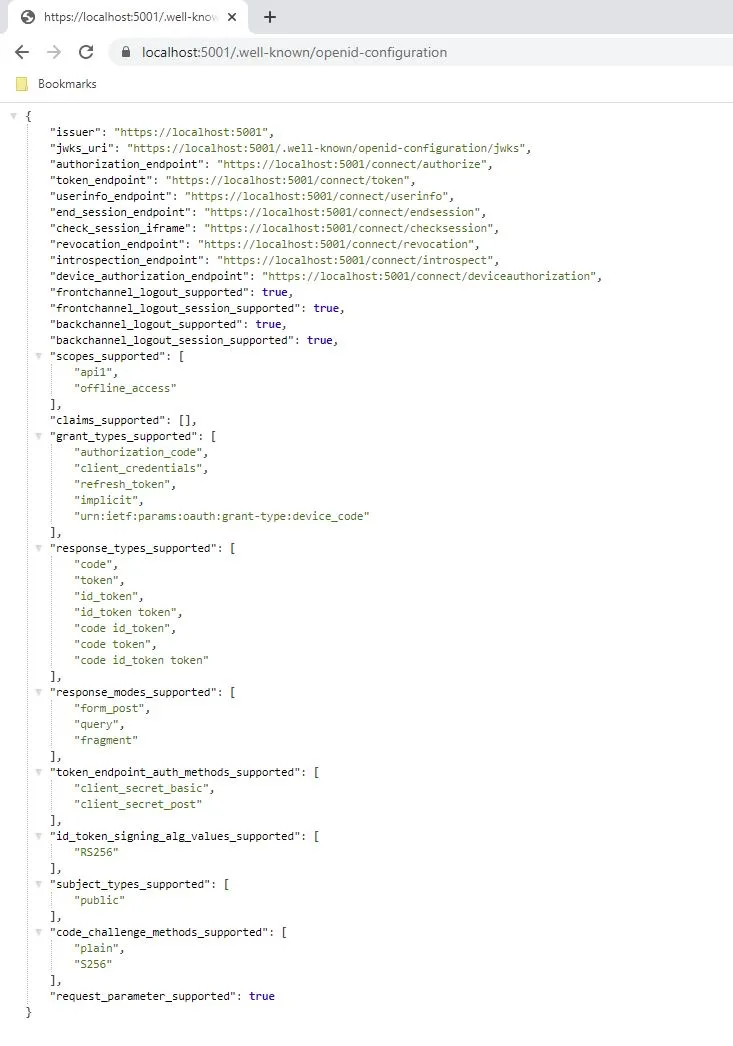

That’s it - your IdentityServer is now configured. If you run the project and then navigate to https://localhost:5001/.well-known/openid-configuration in your browser, you should see the discovery document. The discovery document is a standard endpoint in OpenID Connect and OAuth. It is used by your clients and APIs to retrieve configuration data needed to request and validate tokens, login and logout, etc.

Note

On first startup, IdentityServer will use its automatic key management feature to create a signing key and store it in the src/IdentityServer/keys directory. To avoid accidentally disclosing cryptographic secrets, the entire keys directory should be excluded from source control. It will be recreated if it is not present.

Create An API Project

Next, add an API project to your solution. This API will serve protected resources that will be secured by IdentityServer.

You can either use the ASP.NET Core Web API template from Visual Studio or use the .NET CLI to create the API project. To use the CLI, run the following commands:

cd src
dotnet new webapi -n Api --no-openapi

Then navigate back up to the root quickstart directory and add it to the solution by running the following commands:

cd ..
dotnet sln add ./src/Api

Add JWT Bearer Authentication

Now you will add JWT Bearer Authentication to the API’s ASP.NET pipeline. The goal is to authorize calls to your API using tokens issued by the IdentityServer project. To that end, you will add authentication middleware to the pipeline from the Microsoft.AspNetCore.Authentication.JwtBearer NuGet package. This middleware will:

• Find and parse a JWT sent with incoming requests as an Authorization: Bearer header.
• Validate the JWT’s signature to ensure that it was issued by IdentityServer.
• Validate that the JWT is not expired.

Run this command to add the middleware package to the API:

dotnet add ./src/Api package Microsoft.AspNetCore.Authentication.JwtBearer

Now add the authentication and authorization services to the Service Collection, and configure the JWT Bearer authentication provider as the default Authentication Scheme.

Program.cs

builder.Services.AddAuthentication()
    .AddJwtBearer(options =>
    {
        options.Authority = "https://localhost:5001";
        options.TokenValidationParameters.ValidateAudience = false;
    });

builder.Services.AddAuthorization();

Note

Audience validation is disabled here because access to the api is modeled with ApiScopes only. By default, no audience will be emitted unless the api is modeled with ApiResources instead. See here for a more in-depth discussion.

Add An Endpoint

Replace the templated weather forecast endpoint with a new endpoint:

app.MapGet("identity", (ClaimsPrincipal user) => user.Claims.Select(c => new { c.Type, c.Value }))
    .RequireAuthorization();

This endpoint will be used to test authorization and to display the claims identity through the eyes of the API.

Configure API To Listen On Port 6001

Configure the API to run on https://localhost:6001 only. You can do this by editing the launchSettings.json file in the src/Api/Properties directory. Change these settings for the https profile:

{
  "launchUrl": "identity",
  "applicationUrl": "https://localhost:6001"
}

Test The Identity Endpoint

Run the API project using the https profile and then navigate to the identity controller at https://localhost:6001/identity in a browser. This should return a 401 status code, which means your API requires a credential and is now protected by IdentityServer.

Create The Client Project

The last step is to create a client that requests an access token and then uses that token to access the API. Your client will be a console project in your solution. Run the following commands:

cd src
dotnet new console -n Client

Then as before, add it to your solution using:

cd ..
dotnet sln add ./src/Client

Add The IdentityModel NuGet Package

The token endpoint at IdentityServer implements the OAuth protocol, and you could use raw HTTP to access it. However, we have a client library called IdentityModel that encapsulates the protocol interaction in an easy-to-use API.

Add the *Duende.IdentityModel * NuGet package to your client by running the following command:

dotnet add ./src/Client package Duende.IdentityModel

Retrieve The Discovery Document

IdentityModel includes a client library to use with the discovery endpoint. This way you only need to know the base address of IdentityServer - the actual endpoint addresses can be read from the metadata. Add the following to the client’s Program.cs in the src/Client/Program.cs directory:

using Duende.IdentityModel.Client;

// discovery endpoints from metadata
var client = new HttpClient();
var disco = await client.GetDiscoveryDocumentAsync("https://localhost:5001");
if (disco.IsError)
{
    Console.WriteLine(disco.Error);
    Console.WriteLine(disco.Exception);
    return 1;
}

Note

If you get an error connecting, it may be that the development certificate for localhost is not trusted. You can run dotnet dev-certs https —trust in order to trust the development certificate. This only needs to be done once.

Request A Token From IdentityServer

Next you can use the information from the discovery document to request a token from IdentityServer to access api1:

// request token
var tokenResponse = await client.RequestClientCredentialsTokenAsync(new ClientCredentialsTokenRequest
{
    Address = disco.TokenEndpoint,
    ClientId = "client",
    ClientSecret = "secret",
    Scope = "api1"
});

if (tokenResponse.IsError)
{
    Console.WriteLine(tokenResponse.Error);
    Console.WriteLine(tokenResponse.ErrorDescription);
    return 1;
}

Console.WriteLine(tokenResponse.AccessToken);

Note

Copy and paste the access token from the console to jwt.ms to inspect the raw token.

Calling The API

To send the access token to the API you typically use the HTTP Authorization header. This is done using the SetBearerToken extension method:

// call api
var apiClient = new HttpClient();
apiClient.SetBearerToken(tokenResponse.AccessToken!); // AccessToken is always non-null when IsError is false

var response = await apiClient.GetAsync("https://localhost:6001/identity");
if (!response.IsSuccessStatusCode)
{
    Console.WriteLine(response.StatusCode);
    return 1;
}

var doc = JsonDocument.Parse(await response.Content.ReadAsStringAsync()).RootElement;
Console.WriteLine(JsonSerializer.Serialize(doc, new JsonSerializerOptions { WriteIndented = true }));
return 0;

The completed Program.cs file can be found here.

To test the flow, start the IdentityServer and API projects. Once they are running, run the Client project.

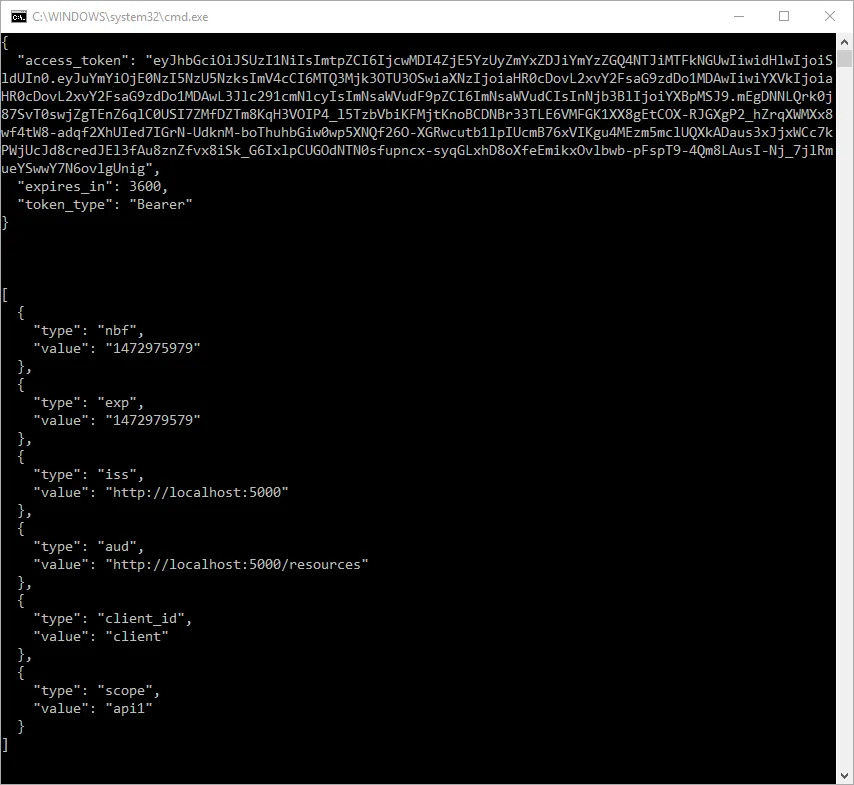

The output should look like this:

If you’re using Visual Studio, here’s how to start everything up:

1. Right-click the solution and select Configure Startup Projects…
2. Choose Multiple Startup Projects and set the action for Api and IdentityServer to Start
3. Run the solution and wait a moment for both the API and IdentityServer to start
4. Right-click the Client project and select Debug -> Start Without Debugging.

Note

By default, an access token will contain claims about the scope, lifetime (nbf and exp), the client ID (client_id) and the issuer name (iss).

Authorization At The API

Right now, the API accepts any access token issued by your IdentityServer. In this section, you will add an Authorization Policy to the API that will check for the presence of the “api1” scope in the access token. The protocol ensures that this scope will only be in the token if the client requests it and IdentityServer allows the client to have that scope. You configured IdentityServer to allow this access by including it in the allowedScopes property. Add the following to the Program.cs file of the API:

Program.cs

builder.Services.AddAuthorization(options =>
{
    options.AddPolicy("ApiScope", policy =>
    {
        policy.RequireAuthenticatedUser();
        policy.RequireClaim("scope", "api1");
    });
});

You can now enforce this policy at various levels, e.g.:

• globally
• for all endpoints
• for specific controllers, actions, or endpoints

Add the policy to the identity endpoint in src/Api/Program.cs:

app.MapGet("identity", (ClaimsPrincipal user) => user.Claims.Select(c => new { c.Type, c.Value }))
    .RequireAuthorization("ApiScope");

Now you can run the API again, and it will enforce that the api1 scope is present in the access token.

Further Experiments

This quickstart focused on the success path:

• The client was able to request a token.
• The client could use the token to access the API.

You can now try to provoke errors to learn how the system behaves, e.g.:

• Try to connect to IdentityServer when it is not running (unavailable).
• Try to use an invalid client id or secret to request the token.
• Try to ask for an invalid scope during the token request.
• Try to call the API when it is not running (unavailable).
• Don’t send the token to the API.
• Configure the API to require a different scope than the one in the token.
