ASP.NET Core Identity

Welcome to Quickstart 5 for Duende IdentityServer! In this quickstart you will integrate IdentityServer with ASP.NET Core Identity.

Note

We recommend you do the quickstarts in order. If you’d like to start here, begin from a copy of the reference implementation of Quickstart 4. Throughout this quickstart, paths are written relative to the base quickstart directory created in part 1, which is the root directory of the reference implementation. You will also need to install the IdentityServer templates.

IdentityServer’s flexible design allows you to use any database you want to store users and their data, including password hashes, multi-factor authentication details, roles, claims, profile data, etc. If you are starting with a new user database, then ASP.NET Core Identity is one option you could choose. This quickstart shows how to use ASP.NET Core Identity with IdentityServer.

The approach this quickstart takes to using ASP.NET Core Identity is to create a new project for the IdentityServer host. This new project will replace the IdentityServer project you built up in the previous quickstarts. You will create a new project because it is a convenient way to get the UI assets that are needed to login and logout with ASP.NET Core Identity. All the other projects in this solution (for the clients and the API) will remain the same.

Note

This quickstart assumes you are familiar with how ASP.NET Core Identity works. If you are not, it is recommended that you first learn about it.

In addition to the written steps below a YouTube video is available:

New Project For ASP.NET Core Identity

The first step is to add a new project for ASP.NET Core Identity to your solution. We provide a template that contains the minimal UI assets needed to use ASP.NET Core Identity with IdentityServer. You will eventually delete the old project for IdentityServer, but there are some items that you will need to migrate over.

Start by creating a new IdentityServer project that will use ASP.NET Core Identity. Run the following commands from the src directory:

dotnet new isaspid -n IdentityServerAspNetIdentity
cd ..
dotnet sln add ./src/IdentityServerAspNetIdentity

When prompted to “seed” the user database, choose “Y” for “yes”. This populates the user database with our “alice” and “bob” users. Their passwords are “Pass123$”.

Note

The template uses Sqlite as the database for the users, and EF migrations are pre-created in the template. If you wish to use a different database provider, you will need to change the provider used in the code and re-create the EF migrations.

Inspect The New Project

Open the new project in the editor of your choice, and inspect the generated code. Much of it is the same from the prior quickstarts and templates. The following sections will describe some key differences and guide you through migrating configuration from the old IdentityServer Project, including:

• The project file (IdentityServerAspNetIdentity.csproj)
• Pipeline and service configuration (HostingExtensions.cs)
• Resource and client configuration (Config.cs)
• Entry point and seed data (Program.cs and SeedData.cs)
• Login and logout pages (Pages in Pages/Account)

IdentityServerAspNetIdentity.csproj

Notice the reference to Duende.IdentityServer.AspNetIdentity. This NuGet package contains the ASP.NET Core Identity integration components for IdentityServer.

HostingExtensions.cs

In ConfigureServices notice the necessary AddDbContext<ApplicationDbContext>() and AddIdentity<ApplicationUser, IdentityRole>() calls are done to configure ASP.NET Core Identity.

Also notice that much of the same IdentityServer configuration you did in the previous quickstarts is already done. The template uses the in-memory style for clients and resources, which are defined in Config.cs.

Finally, notice the addition of the new call to AddAspNetIdentity<ApplicationUser>(). AddAspNetIdentity() adds the integration layer to allow IdentityServer to access the user data for the ASP.NET Core Identity user database. This is needed when IdentityServer must add claims for the users into tokens.

Note that AddIdentity<ApplicationUser, IdentityRole>() must be invoked before AddIdentityServer().

Config.cs

Config.cs contains the hard-coded in-memory clients and resource definitions. To keep the same clients and API working as the prior quickstarts, we need to copy over the configuration data from the old IdentityServer project into this one. Do that now, and afterwards Config.cs should look like this:

public static class Config
{
    public static IEnumerable<IdentityResource> IdentityResources =>
        new IdentityResource[]
        {
            new IdentityResources.OpenId(),
            new IdentityResources.Profile(),
            new IdentityResource()
            {
                Name = "verification",
                UserClaims = new List<string>
                {
                    JwtClaimTypes.Email,
                    JwtClaimTypes.EmailVerified
                }
            }
        };

    public static IEnumerable<ApiScope> ApiScopes =>
        new ApiScope[]
        {
            new ApiScope(name: "api1", displayName: "My API")
        };

    public static IEnumerable<Client> Clients =>
        new Client[]
        {
            new Client
            {
                ClientId = "client",

                // no interactive user, use the clientid/secret for authentication
                AllowedGrantTypes = GrantTypes.ClientCredentials,

                // secret for authentication
                ClientSecrets =
                {
                    new Secret("secret".Sha256())
                },

                // scopes that client has access to
                AllowedScopes = { "api1" }
            },
            // interactive ASP.NET Core Web App
            new Client
            {
                ClientId = "web",
                ClientSecrets = { new Secret("secret".Sha256()) },

                AllowedGrantTypes = GrantTypes.Code,

                // where to redirect to after login
                RedirectUris = { "https://localhost:5002/signin-oidc" },

                // where to redirect to after logout
                PostLogoutRedirectUris = { "https://localhost:5002/signout-callback-oidc" },

                AllowOfflineAccess = true,

                AllowedScopes =
                {
                    IdentityServerConstants.StandardScopes.OpenId,
                    IdentityServerConstants.StandardScopes.Profile,
                    "verification",
                    "api1"
                }
            }
        };
}

At this point, you no longer need the old IdentityServer project and can remove it from the solution. From the quickstart directory, run the following commands:

dotnet sln remove ./src/IdentityServer
rm -r ./src/IdentityServer

Program.cs and SeedData.cs

The application entry point in Program.cs is a little different than most ASP.NET Core projects. Notice that it looks for a command line argument called /seed which is used as a flag to seed the users in the ASP.NET Core Identity database. This seed process is invoked during template creation and already ran when you were prompted to seed the database.

Look at the SeedData class’ code to see how the database is created and the first users are created.

Account Pages

Finally, take a look at the pages in the src/IdentityServerAspNetIdentity/Pages/Account directory. These pages contain slightly different login and logout code than the prior quickstart and templates because the login and logout processes now rely on ASP.NET Core Identity. Notice the use of the SignInManager<ApplicationUser> and UserManager<ApplicationUser> types from ASP.NET Core Identity to validate credentials and manage the authentication session.

Much of the rest of the code is the same from the prior quickstarts and templates.

Logging In With The Web client

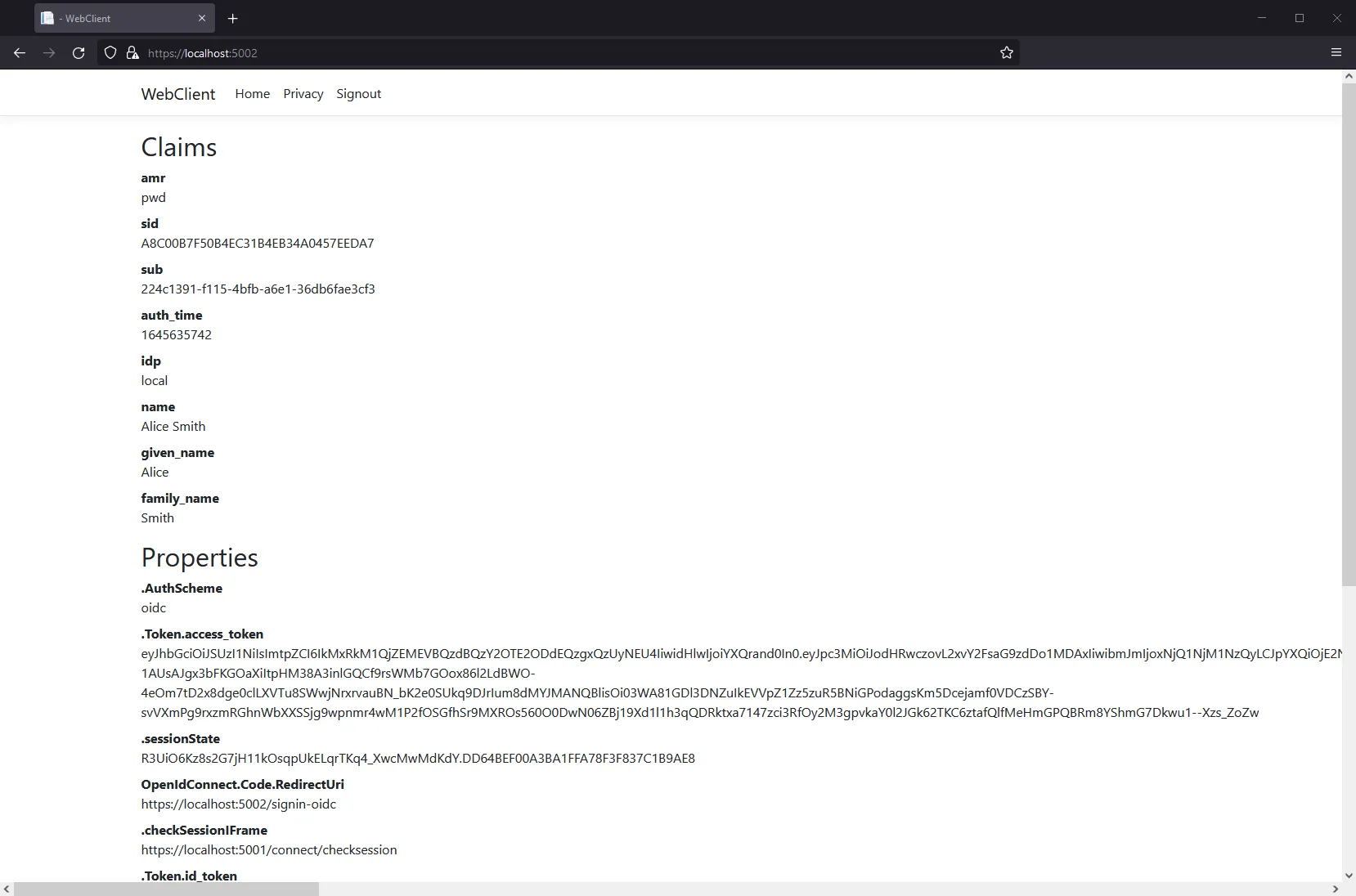

At this point, you should be able to run all the existing clients and samples. Launch the Web client application, and you should be redirected to IdentityServer to log in. Login with one of the users created by the seed process (e.g., alice/Pass123$), and after that you will be redirected back to the Web client application where your user’s claims should be listed.

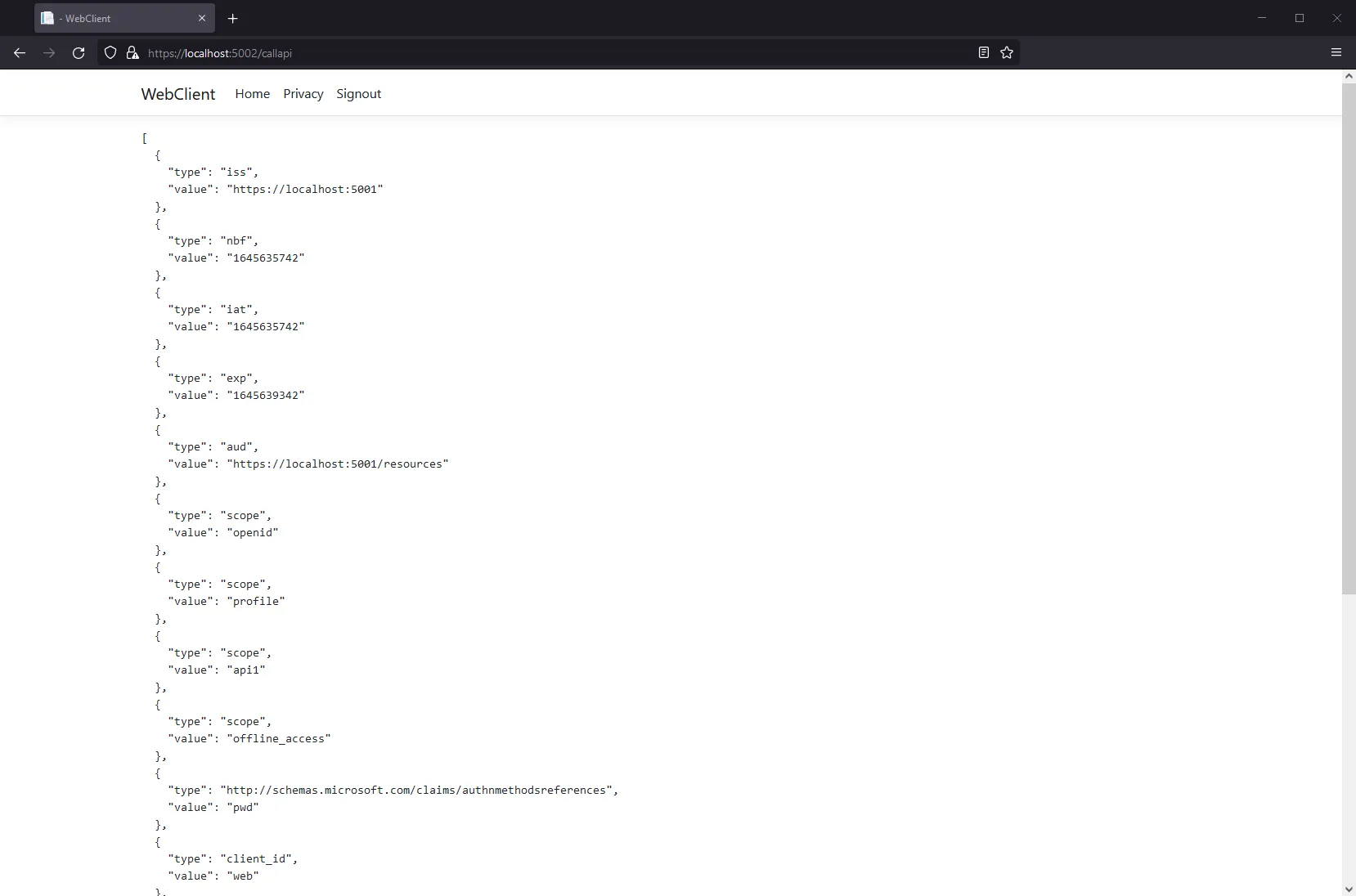

You should also be able to go to the call api page at https://localhost:5002/callapi to invoke the API on behalf of the user:

Congratulations, you’re using users from ASP.NET Core Identity in IdentityServer!

Adding Custom Profile Data

Next you will add a custom property to your user model and include it as a claim when the appropriate Identity Resource is requested.

First, add a FavoriteColor property in src/IdentityServerAspNetIdentity/ApplicationUser.cs.

public class ApplicationUser : IdentityUser
{
    public string FavoriteColor { get; set; }
}

Then, set the FavoriteColor of one of your test users in SeedData.cs

alice = new ApplicationUser
{
    UserName = "alice",
    Email = "AliceSmith@email.com",
    EmailConfirmed = true,
    FavoriteColor = "red",
};

In the same file, add code to recreate the database when you re-seed the data, by calling EnsureDeleted just before Migrate:

var context = scope.ServiceProvider.GetService<ApplicationDbContext>();
context.Database.EnsureDeleted();
context.Database.Migrate();

Note

Caution: this will destroy your test users when you make changes to them. While that is convenient for this quickstart, it is not recommended in production!

Next, create an ef migration for the CustomProfileData and reseed your user database. Run the following commands from the src/IdentityServerAspNetIdentity directory:

dotnet ef migrations add CustomProfileData
dotnet run /seed

Now that you have more data in the database, you can use it to set claims. IdentityServer contains an extensibility point called the IProfileService that is responsible for retrieval of user claims. The ASP.NET Identity Integration includes an implementation of IProfileService that retrieves claims from ASP.NET Identity. You can extend that implementation to use the custom profile data as a source of claims data. See here for more details on the profile service.

Create a new file called src/IdentityServerAspNetIdentity/CustomProfileService.cs and add the following code to it:

using Duende.IdentityServer.AspNetIdentity;
using Duende.IdentityServer.Models;
using IdentityServerAspNetIdentity.Models;
using Microsoft.AspNetCore.Identity;
using System.Security.Claims;

namespace IdentityServerAspNetIdentity
{
    public class CustomProfileService : ProfileService<ApplicationUser>
    {
        public CustomProfileService(UserManager<ApplicationUser> userManager, IUserClaimsPrincipalFactory<ApplicationUser> claimsFactory) : base(userManager, claimsFactory)
        {
        }

        protected override async Task GetProfileDataAsync(ProfileDataRequestContext context, ApplicationUser user)
        {
            var principal = await GetUserClaimsAsync(user);
            var id = (ClaimsIdentity)principal.Identity;
            if (!string.IsNullOrEmpty(user.FavoriteColor))
            {
                id.AddClaim(new Claim("favorite_color", user.FavoriteColor));
            }

            context.AddRequestedClaims(principal.Claims);
        }
    }
}

Register the CustomProfileService in HostingExtensions.cs:

HostingExtensions.cs

builder.Services
    .AddIdentityServer(options =>
    {
        // ...
    })
    .AddInMemoryIdentityResources(Config.IdentityResources)
    .AddInMemoryApiScopes(Config.ApiScopes)
    .AddInMemoryClients(Config.Clients)
    .AddAspNetIdentity<ApplicationUser>()
    .AddProfileService<CustomProfileService>();

Finally, you need to configure your application to make a request for the favorite_color, and include that claim in your client’s configuration.

Add a new IdentityResource in src/IdentityServerAspNetIdentity/Config.cs that will map the color scope onto the favorite_color claim type:

public static IEnumerable<IdentityResource> IdentityResources =>
    new IdentityResource[]
    {
        // ...
        new IdentityResource("color", new [] { "favorite_color" })
    };

Allow the web client to request the color scope (also in Config.cs):

new Client
{
    ClientId = "web",
    // ...

    AllowedScopes = new List<string>
    {
        IdentityServerConstants.StandardScopes.OpenId,
        IdentityServerConstants.StandardScopes.Profile,
        "api1",
        "color"
    }
}

Finally, update the WebClient project so that it will request the color scope. In its src/WebClient/Program.cs file, add the color scope to the requested scopes, and add a claim action to map the favorite_color into the principal:

Program.cs

.AddOpenIdConnect("oidc", options =>
{
    // ...

    options.Scope.Clear();
    options.Scope.Add("openid");
    options.Scope.Add("profile");
    options.Scope.Add("offline_access");
    options.Scope.Add("api1");
    options.Scope.Add("color");

    options.GetClaimsFromUserInfoEndpoint = true;
    options.ClaimActions.MapUniqueJsonKey("favorite_color", "favorite_color");
});

Now restart the IdentityServerAspNetIdentity and WebClient projects, sign out and sign back in as alice, and you should see the favorite color claim.

What’s Missing?

The rest of the code in this template is similar to the other quickstarts and templates we provide. You will notice that this template does not include UI code for user registration, password reset, and other things you might expect from Microsoft’s templates that include ASP.NET Core Identity.

Given the variety of requirements and different approaches to using ASP.NET Core Identity, our template deliberately does not provide those features. The intent of this template is to be a starting point to which you can add the features you need from ASP.NET Core Identity, customized according to your requirements. Alternatively, you can create a new project based on the ASP.NET Core Identity template and add the IdentityServer features you have learned about in these quickstarts to that project. With that approach, you may need to configure IdentityServer so that it knows the paths to pages for user interactions. Set the LoginUrl, LogoutUrl, ConsentUrl, ErrorUrl, and DeviceVerificationUrl as needed in your IdentityServerOptions.
